oorsig
Spesifikasie

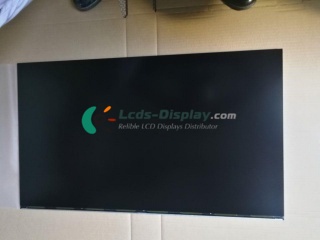

M270KCJ-L5B Rev.C1 C2
M270KCJ-L5B Rev.C1 C2 Basiese inligting
| Paneelmodel | M270KCJ-L5B Rev.C1 C2 |
|---|---|
| Paneelmerk | INNOLUX |
| Descrition | a-Si TFT-LCD ,27 inch, 2560×1440 |
| Paneel Tipe | a-Si TFT-LCD |
| M270KCJ-L5B Rev.C1 C2 prys | Versoek prys en leidyd |
| alias | - |
| Berging temp. | -20 ~~ 60 °C |
| Bedryfs Temp. | 0 ~~ 50 °C |
| vibrasie | - |
| opmerkings | TCO 7.0 Compliance |
M270KCJ-L5B Rev.C1 C2 Meganiese eienskappe
| alias | - |
|---|---|
| Berging temp. | -20 ~~ 60 °C |
| Bedryfs Temp. | 0 ~~ 50 °C |
| vibrasie | - |
| opmerkings | TCO 7.0 Compliance |
| resolusie | 2560(RGB)×1440, Quad-HD |
| Dot Pitch (mm) | 0.0777×0.2331 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.2331×0.2331 (H×V) |
| Aktiewe Area (mm) | 596.736(H) × 335.664(V) |
| Bezel Area (mm) | - |
| Oorsig Dim. (Mm) | 608.8(H) × 355.13(V) |
| Diepte (mm) | 12.8 (Typ.) |
| Vorm styl | Flat Rectangle |
| Oorsigvorm | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| gewig | 2.58/2.87/3.01g (Min./Typ./Max.) |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
M270KCJ-L5B Rev.C1 C2 Optiese funksies
| alias | - |
|---|---|
| Berging temp. | -20 ~~ 60 °C |
| Bedryfs Temp. | 0 ~~ 50 °C |
| vibrasie | - |
| opmerkings | TCO 7.0 Compliance |
| resolusie | 2560(RGB)×1440, Quad-HD |
| Dot Pitch (mm) | 0.0777×0.2331 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.2331×0.2331 (H×V) |
| Aktiewe Area (mm) | 596.736(H) × 335.664(V) |
| Bezel Area (mm) | - |
| Oorsig Dim. (Mm) | 608.8(H) × 355.13(V) |
| Diepte (mm) | 12.8 (Typ.) |
| Vorm styl | Flat Rectangle |
| Oorsigvorm | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| gewig | 2.58/2.87/3.01g (Min./Typ./Max.) |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance (CD / m²) | 350 (Typ.) |
| Kontrasverhouding | 1000:1 (Typ.) (Transmissive) |
| Kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| Skerm af | AAS, Normally Black, Transmissive |
| Beste uitsig op | Symmetry |
| Reaksie (ms) | 8/7 (Typ.)(Tr/Td) |
| Wit koördinaat | X:0.313; Y:0.329 |
| Wys kleure | 16.7M (8-bit) |
| Color Gamut | 95% DCI-P3 |
| Wit Uniformiteit | 1.33 (Max.)(9 points) |
M270KCJ-L5B Rev.C1 C2 Elektroniese funksie
| alias | - |
|---|---|
| Berging temp. | -20 ~~ 60 °C |
| Bedryfs Temp. | 0 ~~ 50 °C |
| vibrasie | - |
| opmerkings | TCO 7.0 Compliance |
| resolusie | 2560(RGB)×1440, Quad-HD |
| Dot Pitch (mm) | 0.0777×0.2331 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.2331×0.2331 (H×V) |
| Aktiewe Area (mm) | 596.736(H) × 335.664(V) |
| Bezel Area (mm) | - |
| Oorsig Dim. (Mm) | 608.8(H) × 355.13(V) |
| Diepte (mm) | 12.8 (Typ.) |
| Vorm styl | Flat Rectangle |
| Oorsigvorm | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| gewig | 2.58/2.87/3.01g (Min./Typ./Max.) |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance (CD / m²) | 350 (Typ.) |
| Kontrasverhouding | 1000:1 (Typ.) (Transmissive) |
| Kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| Skerm af | AAS, Normally Black, Transmissive |
| Beste uitsig op | Symmetry |
| Reaksie (ms) | 8/7 (Typ.)(Tr/Td) |
| Wit koördinaat | X:0.313; Y:0.329 |
| Wys kleure | 16.7M (8-bit) |
| Color Gamut | 95% DCI-P3 |
| Wit Uniformiteit | 1.33 (Max.)(9 points) |
| Raamkoers | 60Hz |
| Reverse Scan | No |
| Kragverbruik | 27.9W (Max.) |
M270KCJ-L5B Rev.C1 C2 Sein koppelvlak
| alias | - |
|---|---|
| Berging temp. | -20 ~~ 60 °C |
| Bedryfs Temp. | 0 ~~ 50 °C |
| vibrasie | - |
| opmerkings | TCO 7.0 Compliance |
| resolusie | 2560(RGB)×1440, Quad-HD |
| Dot Pitch (mm) | 0.0777×0.2331 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.2331×0.2331 (H×V) |
| Aktiewe Area (mm) | 596.736(H) × 335.664(V) |
| Bezel Area (mm) | - |
| Oorsig Dim. (Mm) | 608.8(H) × 355.13(V) |
| Diepte (mm) | 12.8 (Typ.) |
| Vorm styl | Flat Rectangle |
| Oorsigvorm | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| gewig | 2.58/2.87/3.01g (Min./Typ./Max.) |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance (CD / m²) | 350 (Typ.) |
| Kontrasverhouding | 1000:1 (Typ.) (Transmissive) |
| Kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| Skerm af | AAS, Normally Black, Transmissive |
| Beste uitsig op | Symmetry |
| Reaksie (ms) | 8/7 (Typ.)(Tr/Td) |
| Wit koördinaat | X:0.313; Y:0.329 |
| Wys kleure | 16.7M (8-bit) |
| Color Gamut | 95% DCI-P3 |
| Wit Uniformiteit | 1.33 (Max.)(9 points) |
| Raamkoers | 60Hz |
| Reverse Scan | No |
| Kragverbruik | 27.9W (Max.) |
| hoeveelheid | 1 pcs |
| penne | 51 pins |
| steek | 0.5 mm |
| Pin-konfigurasie | |
| Signaaltipe | LVDS (4 ch, 8-bit) |
M270KCJ-L5B Rev.C1 C2 Backlight-stelsel
| alias | - |
|---|---|
| Berging temp. | -20 ~~ 60 °C |
| Bedryfs Temp. | 0 ~~ 50 °C |
| vibrasie | - |
| opmerkings | TCO 7.0 Compliance |
| resolusie | 2560(RGB)×1440, Quad-HD |
| Dot Pitch (mm) | 0.0777×0.2331 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.2331×0.2331 (H×V) |
| Aktiewe Area (mm) | 596.736(H) × 335.664(V) |
| Bezel Area (mm) | - |
| Oorsig Dim. (Mm) | 608.8(H) × 355.13(V) |
| Diepte (mm) | 12.8 (Typ.) |
| Vorm styl | Flat Rectangle |
| Oorsigvorm | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| gewig | 2.58/2.87/3.01g (Min./Typ./Max.) |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance (CD / m²) | 350 (Typ.) |
| Kontrasverhouding | 1000:1 (Typ.) (Transmissive) |
| Kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| Skerm af | AAS, Normally Black, Transmissive |
| Beste uitsig op | Symmetry |
| Reaksie (ms) | 8/7 (Typ.)(Tr/Td) |
| Wit koördinaat | X:0.313; Y:0.329 |
| Wys kleure | 16.7M (8-bit) |
| Color Gamut | 95% DCI-P3 |
| Wit Uniformiteit | 1.33 (Max.)(9 points) |
| Raamkoers | 60Hz |
| Reverse Scan | No |
| Kragverbruik | 27.9W (Max.) |
| hoeveelheid | 1 pcs |
| penne | 6 pins |
| steek | 1.0 mm |
| Pin-konfigurasie | |
| Signaaltipe | LVDS (4 ch, 8-bit) |
| Pin-konfigurasie H: Higt VoltageN: Geen verbindingL: LaagspanningA: AnodeC: Katode "/> | BLE-6PINS-CCAACC |
| Backlight Driver | No |
