oorsig
Spesifikasie

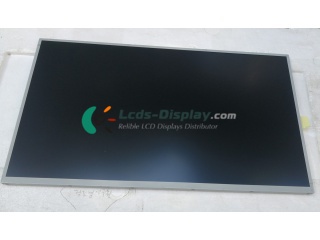

LM238WR2-SPD1
LM238WR2-SPD1 Basiese inligting
| Paneelmodel | LM238WR2-SPD1 |
|---|---|
| Paneelmerk | LG Display |
| Descrition | a-Si TFT-LCD ,23.8 inch, 3840×2160 |
| Paneel Tipe | a-Si TFT-LCD |
| LM238WR2-SPD1 prys | Versoek prys en leidyd |
| alias | LM238WR2 (SP)(D1) |
| Berging temp. | -20 ~ 60 °C |
| Bedryfs Temp. | 0 ~ 50 °C |
| vibrasie | - |
LM238WR2-SPD1 Meganiese eienskappe
| alias | LM238WR2 (SP)(D1) |
|---|---|
| Berging temp. | -20 ~ 60 °C |
| Bedryfs Temp. | 0 ~ 50 °C |
| vibrasie | - |
| resolusie | 3840(RGB)×2160, UHD |
| Dot Pitch (mm) | 0.04575×0.13725 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.13725×0.13725 (H×V) |
| Aktiewe Area (mm) | 527.04(H) × 296.46(V) |
| Bezel Area (mm) | 530.2(H) × 299.6(V) |
| Oorsig Dim. (Mm) | 545(H) × 317.4(V) |
| Diepte (mm) | 8.4/12.7 (Typ./Max.) |
| Vorm styl | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| montage | Rear mounting Pole (6-M3) |
| gewig | 1.73/1.82Kgs (Typ./Max.) |
| behandeling | Antiglare, Hard coating (3H) |
LM238WR2-SPD1 Optiese funksies
| alias | LM238WR2 (SP)(D1) |
|---|---|
| Berging temp. | -20 ~ 60 °C |
| Bedryfs Temp. | 0 ~ 50 °C |
| vibrasie | - |
| resolusie | 3840(RGB)×2160, UHD |
| Dot Pitch (mm) | 0.04575×0.13725 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.13725×0.13725 (H×V) |
| Aktiewe Area (mm) | 527.04(H) × 296.46(V) |
| Bezel Area (mm) | 530.2(H) × 299.6(V) |
| Oorsig Dim. (Mm) | 545(H) × 317.4(V) |
| Diepte (mm) | 8.4/12.7 (Typ./Max.) |
| Vorm styl | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| montage | Rear mounting Pole (6-M3) |
| gewig | 1.73/1.82Kgs (Typ./Max.) |
| behandeling | Antiglare, Hard coating (3H) |
| Luminance (CD / m²) | 250(Typ.) |
| Kontrasverhouding | 1000:1 (Typ.) (Transmissive) |
| Kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| Skerm af | IPS, Normally Black, Transmissive |
| Beste uitsig op | Symmetry |
| Reaksie (ms) | 14 (Typ.)(G to G) |
| Wit koördinaat | Wx:0.313; Wy:0.329 |
| Wys kleure | 1.07B (8-bit + Hi-FRC) |
| Color Gamut | sRGB |
| Wit Uniformiteit | 1.33 (Max.)(9 points) |
LM238WR2-SPD1 Elektroniese funksie
| alias | LM238WR2 (SP)(D1) |
|---|---|
| Berging temp. | -20 ~ 60 °C |
| Bedryfs Temp. | 0 ~ 50 °C |
| vibrasie | - |
| resolusie | 3840(RGB)×2160, UHD |
| Dot Pitch (mm) | 0.04575×0.13725 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.13725×0.13725 (H×V) |
| Aktiewe Area (mm) | 527.04(H) × 296.46(V) |
| Bezel Area (mm) | 530.2(H) × 299.6(V) |
| Oorsig Dim. (Mm) | 545(H) × 317.4(V) |
| Diepte (mm) | 8.4/12.7 (Typ./Max.) |
| Vorm styl | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| montage | Rear mounting Pole (6-M3) |
| gewig | 1.73/1.82Kgs (Typ./Max.) |
| behandeling | Antiglare, Hard coating (3H) |
| Luminance (CD / m²) | 250(Typ.) |
| Kontrasverhouding | 1000:1 (Typ.) (Transmissive) |
| Kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| Skerm af | IPS, Normally Black, Transmissive |
| Beste uitsig op | Symmetry |
| Reaksie (ms) | 14 (Typ.)(G to G) |
| Wit koördinaat | Wx:0.313; Wy:0.329 |
| Wys kleure | 1.07B (8-bit + Hi-FRC) |
| Color Gamut | sRGB |
| Wit Uniformiteit | 1.33 (Max.)(9 points) |
| Raamkoers | 60Hz |
| Reverse Scan | No |
| Totale verbruik | 20.6W (Typ.) |
LM238WR2-SPD1 Sein koppelvlak
| alias | LM238WR2 (SP)(D1) |
|---|---|
| Berging temp. | -20 ~ 60 °C |
| Bedryfs Temp. | 0 ~ 50 °C |
| vibrasie | - |
| resolusie | 3840(RGB)×2160, UHD |
| Dot Pitch (mm) | 0.04575×0.13725 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.13725×0.13725 (H×V) |
| Aktiewe Area (mm) | 527.04(H) × 296.46(V) |
| Bezel Area (mm) | 530.2(H) × 299.6(V) |
| Oorsig Dim. (Mm) | 545(H) × 317.4(V) |
| Diepte (mm) | 8.4/12.7 (Typ./Max.) |
| Vorm styl | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| montage | Rear mounting Pole (6-M3) |
| gewig | 1.73/1.82Kgs (Typ./Max.) |
| behandeling | Antiglare, Hard coating (3H) |
| Luminance (CD / m²) | 250(Typ.) |
| Kontrasverhouding | 1000:1 (Typ.) (Transmissive) |
| Kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| Skerm af | IPS, Normally Black, Transmissive |
| Beste uitsig op | Symmetry |
| Reaksie (ms) | 14 (Typ.)(G to G) |
| Wit koördinaat | Wx:0.313; Wy:0.329 |
| Wys kleure | 1.07B (8-bit + Hi-FRC) |
| Color Gamut | sRGB |
| Wit Uniformiteit | 1.33 (Max.)(9 points) |
| Raamkoers | 60Hz |
| Reverse Scan | No |
| Totale verbruik | 20.6W (Typ.) |
| Spanningsvoorsiening | 10.0V (Typ.) |
| Huidige aanbod | 630/788mA (Typ./Max.) |
| verbruik | 6.3/7.88W (Typ./Max.) |
| Signaaltipe | eDP (4 Lanes) |
| Logiese Spanning | - |
| posisie | |
| steek | Pins |
| hoeveelheid | Pin Configuration |
LM238WR2-SPD1 Backlight-stelsel
| alias | LM238WR2 (SP)(D1) |
|---|---|
| Berging temp. | -20 ~ 60 °C |
| Bedryfs Temp. | 0 ~ 50 °C |
| vibrasie | - |
| resolusie | 3840(RGB)×2160, UHD |
| Dot Pitch (mm) | 0.04575×0.13725 (H×V) |
| Pixel-formaat | RGB Vertical Stripe |
| Pixel Pitch (mm) | 0.13725×0.13725 (H×V) |
| Aktiewe Area (mm) | 527.04(H) × 296.46(V) |
| Bezel Area (mm) | 530.2(H) × 299.6(V) |
| Oorsig Dim. (Mm) | 545(H) × 317.4(V) |
| Diepte (mm) | 8.4/12.7 (Typ./Max.) |
| Vorm styl | - |
| Aspect Ratio | 16:9 (H:V) |
| geaardheid | Landscape type |
| montage | Rear mounting Pole (6-M3) |
| gewig | 1.73/1.82Kgs (Typ./Max.) |
| behandeling | Antiglare, Hard coating (3H) |
| Luminance (CD / m²) | 250(Typ.) |
| Kontrasverhouding | 1000:1 (Typ.) (Transmissive) |
| Kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| Skerm af | IPS, Normally Black, Transmissive |
| Beste uitsig op | Symmetry |
| Reaksie (ms) | 14 (Typ.)(G to G) |
| Wit koördinaat | Wx:0.313; Wy:0.329 |
| Wys kleure | 1.07B (8-bit + Hi-FRC) |
| Color Gamut | sRGB |
| Wit Uniformiteit | 1.33 (Max.)(9 points) |
| Raamkoers | 60Hz |
| Reverse Scan | No |
| Totale verbruik | 20.6W (Typ.) |
| Spanningsvoorsiening | 47.7±3.2V |
| Huidige aanbod | 75/80mA (Typ./Max.) |
| verbruik | 14.3/15.3W (Typ./Max.) |
| Signaaltipe | eDP (4 Lanes) |
| Logiese Spanning | - |
| posisie | |
| steek | Pins |
| hoeveelheid | Pin Configuration H:Higt VoltageN:No connectionL:Low VoltageA:AnodeC:Cathode" /> |
| vervanging | - |
| vorm | 4 strings |
| Lewensduur | 30K(Min.) Hours |
| Backlight Driver | No |
